DisplayPort Over USB-C

The most advanced A/V display connection technology now uses the most versatile connector.

  • Full DisplayPort audio/video (A/V) performance (up to 8k at 60Hz)
  • SuperSpeed USB (USB 3.1) data
  • Up to 100 watts of power over a single cable
  • Reversible plug orientation and cable direction
  • Backward compatibility to VGA, DVI, and HDMI with plug adapters or adapter cables
  • Adapters supports HDMI 2.0a and full 4K UHD resolution

“Long awaited, the Power Deliver 2.0 specification defined new standards for power delivery to allow Type-C USB ports to supply devices with much greater amounts of power than the previous standard allowed, now up to 5A at 5V, 12V, and 20V, for a maximum power delivery of 100W.”

Anandtech.com

More Press Coverage

Get DisplayPort Over USB Type-C

In the market for a new device? Look for full DisplayPort A/V performance with monitor resolutions of 4K and beyond, plus SuperSpeed USB and system power over a single connector.

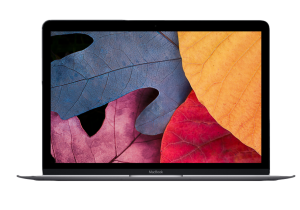

MacBook
Dell Latitude 7280
Samsung S8

DisplayPort over USB-C Technical Details

DisplayPort leverages the Alternate Mode Functional Extension of the USB Type-C interface, and shares similar electrical characteristics with USB 3.1, allowing use of common system elements.

  • Video, SuperSpeed USB and power, all on one connector
  • 4K @60Hz 24-bit color (without compression) with simultaneous USB 3.1
  • 5K (5120 x 2880) display support without compression with simultaneous USB 2.0
  • Support for BT.2020 color space, HDR, and HDCP 2.2
  • 8K x 4K display support with use of 4:2:0 pixel structure (good) or  VESA Display Stream Compression (better)
  • High-end multichannel audio support
  • Backward compatible with VGA, DVI, and HDMI 2.0 with CEC using plug adapters or adapter cables
  • Extensible packet-based data structure

Learn more about the DisplayPort standard
